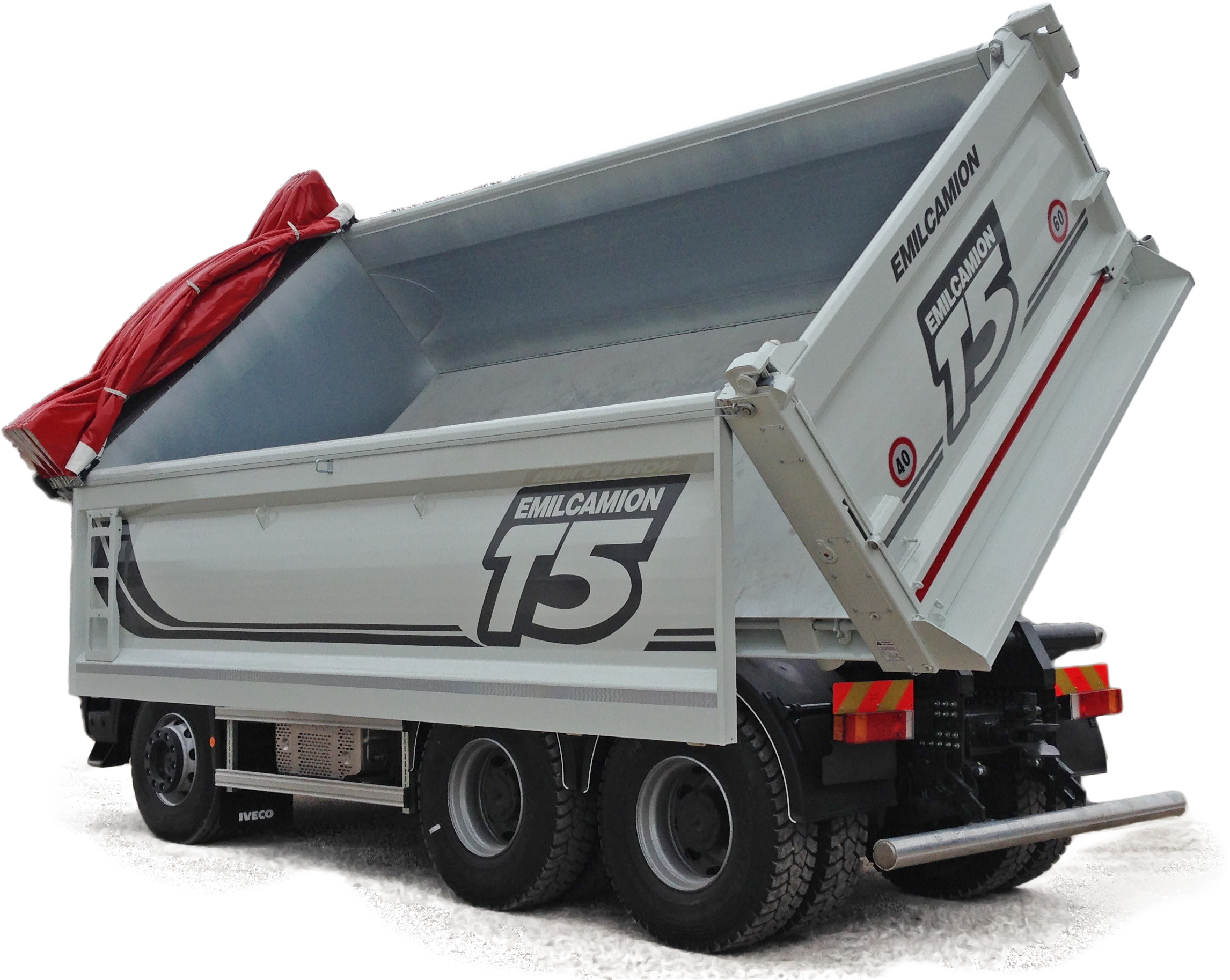

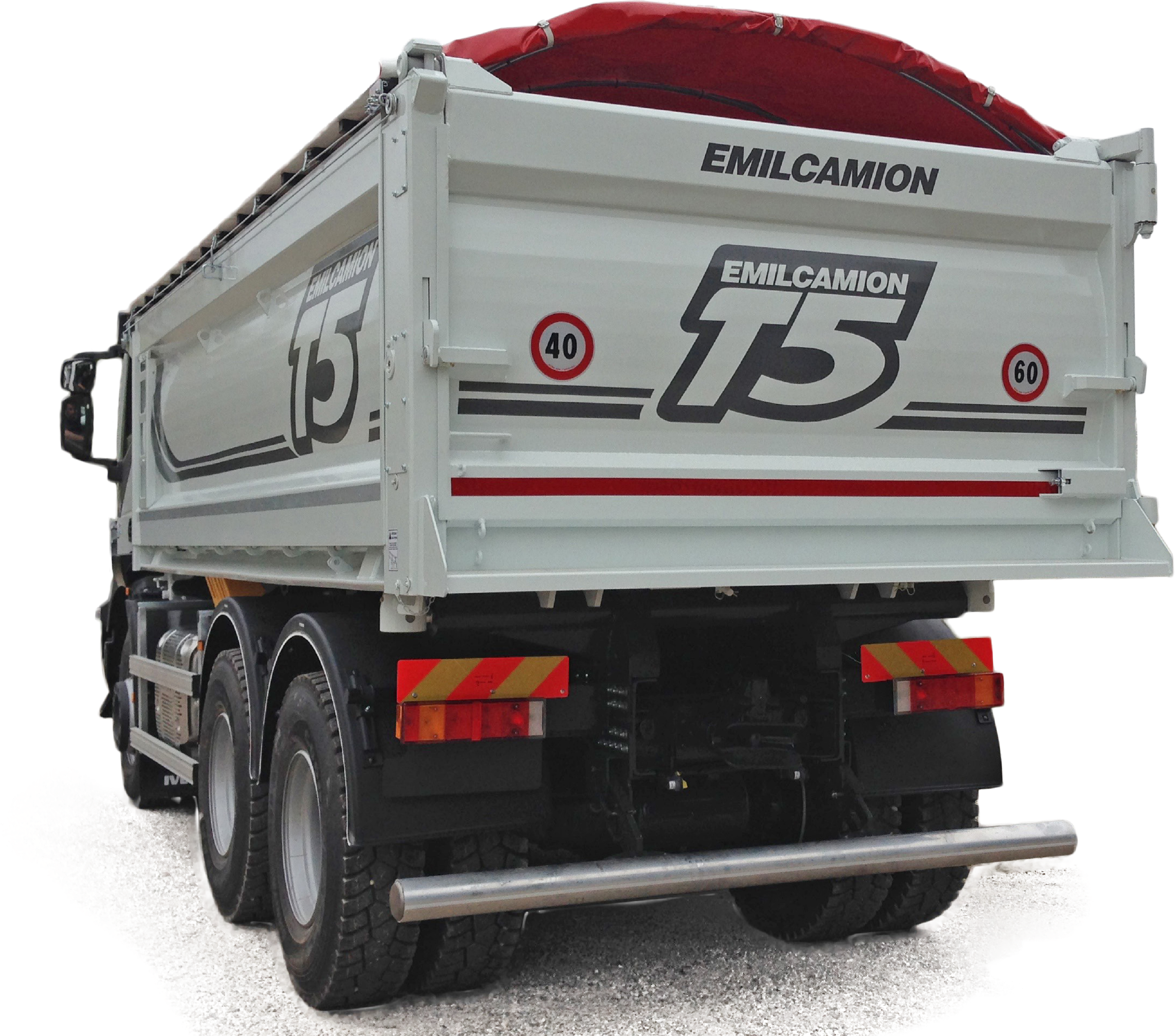

TRILATERAL DUMP T5

The trilateral dump with a raising cylinder fitted under the body is always the most versatile and popular fit out, ordered and used by construction, transport and earthmoving companies. Precisely because of its ability to be versatile in all work applications, the T5 trilateral dump is one of EMILCAMION’s reference products. In this context we wanted to invest in new construction solutions, aiming to maintain their operational reliability, but achieving important objectives in terms of lightness and new functional features. The new wear-resistant steels with 400-450 Brinnel hardness allowed us to produce avant-garde profiles and technical solutions. The new series of T5 trilateral dumpers features the use of entire arched gates with reinforcement struts, which not only provide excellent structural support, but also allow for a considerable weight reduction in the outfitted vehicle. T5 is also available in the CAMALEONTE version with hydraulic opening of the side gates.

TECHNICAL CHARACTERISTICS

Superstructure T5 trilateral dump superstructure with one cylinder fitted under the body – side gates opening at the lower section – folding/streamer tailgate opening – BASIC 6/4
Weight Complete superstructure in the BASIC version 4,500kg

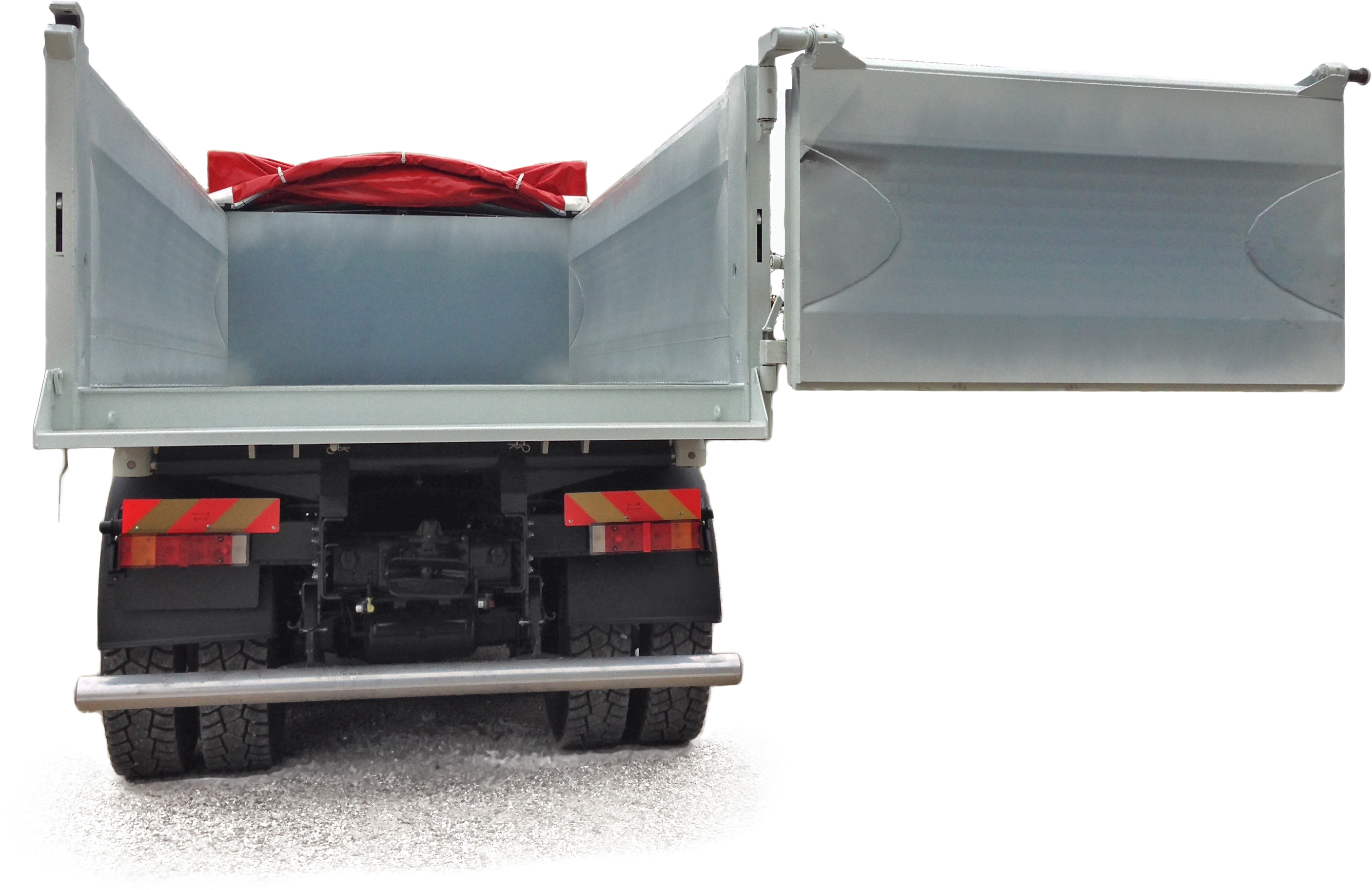

Opening Side gates opening at the lower section – FOLDING/STREAMER tailgate opening
Bed thickness BASIC 6mm – on request 8-10mm
Gate thickness BASIC 4mm – on request 5mm – 6mm – 8mm
Raising system Telescopic hydraulic cylinder with nine under-body raising extensions and hydraulic opening system of lower hinges for tailgate
Raising speed 30 sec. x 1,000rpm
Hydraulics Low pressure with self-reversing gear pump
Safety system Use and security systems conforming to Machine Directive

STANDARD FIT OUT

CAB GUARD
Cab guard intended for use with load cover and supplied in the most suitable size for holding the load cover when folded. The accessory depends on the model and brand of vehicle. Load cover NOT INCLUDED.
LATERAL AND REAR REFLECTIVE BODY STRIPSAttached in compliance to directives issued by competent authorities.
MCTC SERVICE TRIAL AND CERTIFICATIONS
The vehicle is provided with product origin documentation and a type-test certificate for its registration. EC certification documentation is also provided.

ORIGINAL UNDER-RUN PROTECTION BAR

Unless a different request is made, the OEM under-run protection bar will be retained as standard.
SANDING
Before painting, the body is given full sanding treatment.
SIDE CLEARANCE LIGHTS
The vehicle’s side clearance lights are integrated.
SIDEGUARDS
Accessory fitted in compliance with current legislation.
SINGLE REAR MUDGUARDS
Manufactured in reinforced PVC, fitted in pairs and easy to replace.
SINGLE-COLOUR PAINT FINISH WITH DECAL DECORATION
After sanding and painting, the body is decorated with decals available in various colours, in shades to match the load cover, chosen by the customer.
SPARE WHEEL CARRIER
Removable wheel carrier with hand winch, fitted to the front end, near the cab.
TOOLBOX

ACCESSORI OPZIONALI

CAMALEONTE – Dispositivo idraulico di movimentazione delle sponde laterali (2 sponde)
CAMALEONTE – Dispositivo impianto idraulico di sollevanto delle sponde laterali ( 1 sponda)
Cassetta porta attrezzi supplementare STANDARD INOX
Copricarico SPINNAKER a comando elettrico con telecomando
Fornitura e montaggio paraurti posteriore sollevabile pneumaticamente dalla cabina (Fornitura Kit TKE)
Grafica personalizzata
KIT ASFALTO EVO (telo elettrico SPINNAKER + barra snodata + prolunga scarico)
Kit sollevamento pneumatico della barra para incastro posteriore (Fornitura Kit TKE)
Paraurti anti incastro posteriore sollevabile manualmente (Fornitura Kit TKE)
Prolunga scarico in finitrice smontabile
Tubazione idraulica motrice/rimorchio
Variazione spessori lamiere pianale e pareti da 6/4 a 8/6 mm
Verniciatura cassa bicolore + serigrafie adesive
